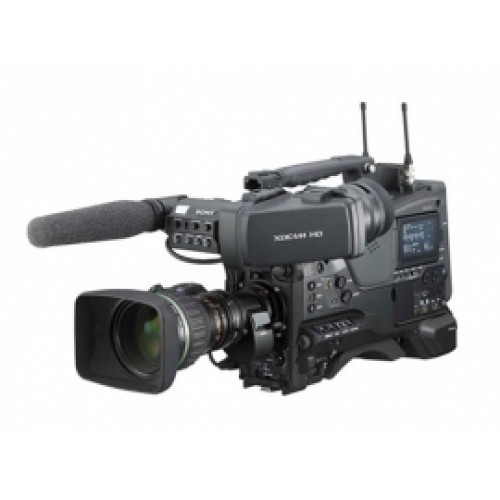

  • SONY PMW-500





Sony first Top-of-the-range Solid State Memory Shoulder-mount XDCAM Camcorder featuring PowerHAD FX CCD, SxS media and up to 50Mbps MPEG2 HD422 recording.

  • Three 2/3-inch type Full-HD Power HAD FX CCDs
  • SxS Memory Cards Combine High Transfer Speeds and High Reliability
  • HD 1920x1080 and 1280x720 Recording Using the MPEG HD 422 Codec
  • Well-balanced Compact Body weighing 3.4kg and Low Power Consumption at 29W
  • XMPilot, new workflow via Wi-Fi




Mass Approx. 3.4 kg (Approx. 7 lb 7 oz) (without lens)
Dimension Approx. 124 x 269 x 332 mm (5 x 10 5/8 x 13 1/8 inches) (excluding protrusions, body only)
Power Requirements DC 12 V (11 V to 17 V)
Power consumption Approx. 33 W (with viewfinder, lens and microphone while recording); Approx. 29 W (body while recording)
Operating Temperature -5°C to +40°C, 23°F to 104°F
Storage Temperature -20°C to +60°C, -4°F to +140°F
Supplied Accessories Shoulder Strap (x1), Cold Shoe Kit (x1), Operation Manual (x1), XDCAM Browser software (x1), SxS device driver software (x1)

UDF mode 4:2:2 (50Mbps) & 4:2:0 (35Mbps only)
FAT mode 4:2:0 (35Mbps, 25Mbps@1440x1080 60i/50i/23.98p)
Frequency 59.94i,50i, 29.97p, 25p, 23.98p

HD422 mode CBR, maximum bit rate: 50 Mbps, MPEG-2 422P@HL
HQ mode VBR, maximum bit rate: 35 Mbps, MPEG-2 MP@HL
SP mode CBR, 25 Mbps, MPEG-2 MP@H-14
SD mode (with optional CBK-MD01) IMX, DVCAM

HD 422 50 Mode LPCM 24 bits, 48 kHz 4 channels
HD 420 HQ Mode LPCM 16 bits, 48 kHz 4 channels
SD IMX Mode (with optional CBK-MD01) LPCM 16/24 bits, 48 kHz 4 channels
SD DVCAM Mode (with optional CBK-MD01) LPCM 16 bits, 48 kHz 4 channels

HD Mode LPCM 16 bits, 48 kHz 4 channels
SD Mode (with optional CBK-MD01) LPCM 16 bits, 48 kHz 2 channels

HD 422 50 Mode MPEG-2 422P@HL, 50 Mbps/ CBR (1920 × 1080/ 59.94i, 50i, 29.97P, 25P,23.98P), (1280 × 720/ 59.94P, 50P, 29.97P, 25P, 23.98P)
HD 420 HQ Mode MPEG-2 MP@HL, 35 Mbps/ VBR (1440 × 1080/ 59.94i, 50i, 29.97P, 25P,23.98P), (1280 × 720/ 59.94P, 50P, 23.98P(PD))
SD IMX Mode (with optional CBK-MD01) (720 × 486/ 59.94i, 29.97PsF), (720 × 576/ 50i, 25PsF)
SD DVCAM Mode (with optional CBK-MD01) (720 × 480/ 59.94i, 29.97PsF), (720 × 576/ 50i, 25PsF)

HD HQ 1920 Mode MPEG-2 MP@HL, 35 Mbps/ VBR (1920 × 1080/ 59.94i, 50i, 29.97P, 25P,23.98P)
HD HQ 1440 Mode MPEG-2 MP@HL, 35 Mbps/ VBR (1440 × 1080/ 59.94i, 50i, 29.97P, 25P,23.98P)
HD HQ 1280 Mode MPEG-2 MP@HL, 35 Mbps/ VBR (1280 × 720/59.94P, 50P, 29.97P, 25P,23.98P)
HD SP 1440 Mode MPEG-2 MP@H-14, 25 Mbps/ CBR (1440 × 1080/ 59.94i, 50i (23.98P is converted to 59.94i in 2-3 pulldown processing.))
SD DVCAM Mode (with optional CBK-MD01) (720 × 480/59.94i, 29.97PsF), (720 × 576/50i, 25PsF)

HD 422 50/SD IMX Mode (Approx. 120 min with SBS-64G1A (64 GB) memory card), (Approx. 60 min with SBP-32 / SBS-32G1A (32 GB) memory card), (Approx. 30 min with SBP-16 (16 GB) memory card)
HD 420 HQ Mode (Approx. 180 min with SBS-64G1A (64 GB) memory card), (Approx. 90 min with SBP-32 / SBS-32G1A (32 GB) memory card), (Approx. 45 min with SBP-16 (16 GB) memory card)
SD DVCAM Mode (with optional CBK-MD01) (Approx. 220 min with SBS-64G1A (64 GB) memory card), (Approx. 110 min with SBP-32 / SBS-32G1A (32 GB) memory card), (Approx. 55 min with SBP-16 (16 GB) memory card)

HD HQ Mode (Approx. 200 min with SBS-64G1A (64 GB) memory card), (Approx. 100 min with SBP-32 / SBS-32G1A (32 GB) memory card), (Approx. 50 min with SBP-16 (16 GB) memory card)
HD SP Mode (Approx. 280 min with SBS-64G1A (64 GB) memory card), (Approx. 140 min with SBP-32 / SBS-32G1A (32 GB) memory card), (Approx. 70 min with SBP-16 (16 GB) memory card)
SD DVCAM Mode (Approx. 260 min with SBS-64G1A (64 GB) memory card), (Approx. 130 min with SBP-32 / SBS-32G1A (32 GB) memory card), (Approx. 65 min with SBP-16 (16 GB) memory card)

UDF IMX 50 Mbps and DVCAM 25Mbps
FAT DVCAM 25Mbps

720p 1P to 60P (1-50p in PAL area setting in UDF mode)
1080p 1P to 60P (1-50p in PAL area setting in UDF mode)

Lens Mount Sony 2/3-inch type bayonet mount

Image device 2/3-inch Power HAD FX CCD
Effective pixel 1920 x 1080
Optical System F1.4 prism system
Built-in Optical Filters 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Sensitivity (2000 lx, 89.9% reflectance) F12 (typical at 50i)
Minimum Illumination 0.016 lx (typical) (1920 x 1080/59.94i mode, F1.4, +42 dB gain, with 64-frame accumulation)
S/N 59 dB (Y) (typical)
Horizontal Resolution 1,000 TV lines or more (1920 x 1080i mode)
Shutter Speed 1/60 sec to 1/2,000 sec + ECS *2 *3
Slow Shutter (SLS) 2, 3, 4, 5, 6, 7, 8, 16, 32, 64-frame accumulation
Slow & Quick Motion Function 720p: Frame rate selectable from 1 fps to 60 fps (from 1 fps to 50 fps in the case of PAL area setting in the UDF mode); 1080p: Frame rate selectable from 1 fps to 60 fps (from 1 fps to 25 fps in the case of PAL area setting in the UDF mode)
White Balance Preset (3200K), Memory A, Memory B/ATW
Gain -6, -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42 dB

Audio Input XLR-type 3-pin (female) (x2), Line/Mic/Mic +48 V selectable
Video Output BNC (x1) HD-Y or Analog composite
Audio Output XLR-type 5-pin
SDI Output BNC (x1), HD-SDI/SD-SDI selectable
i.LINK IEEE 1394, 6-pin (x1), HDV (HDV 1080i )/DVCAM stream input/output  *1 , S400
